Product Details:
|
| Power: | 3kw | Size: | 2250*800*1700mm |
|---|---|---|---|
| Product Name: | Horizontal Ribbon Mixer | Function: | Mixer Blender |
| Usage: | Food, Chemical, Paint Coatings, Medical, Agricultural | Material: | Stainless Steel 304 |
| Machine Type: | Dispersion Blender Mixer Machine | Capacity: | Customers' Request |
| Output: | 450-2000L/time | Stirrer Type: | High Speed Homogenizer |
| Color: | Steel True Colors | Control: | Button |
| High Light: | SUS 304 Sauce Stirring Machine,3kw Sauce Stirring Machine,450L/Time Snack Food Processing Machinery |
||
▶Product Description:

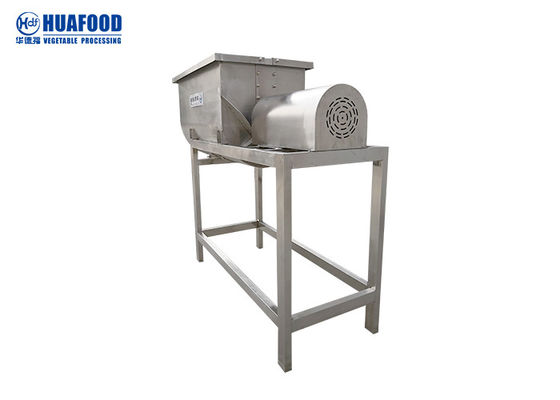

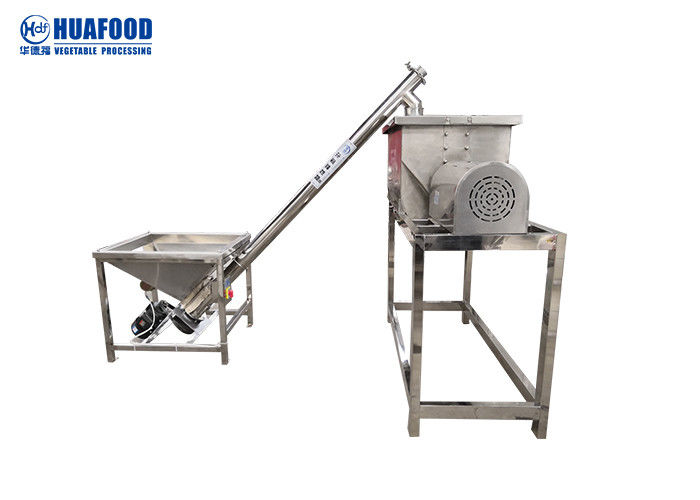

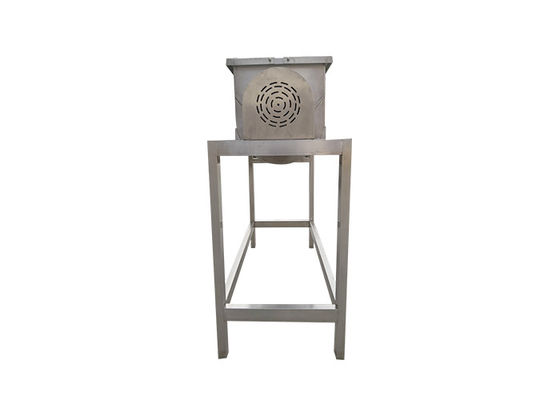

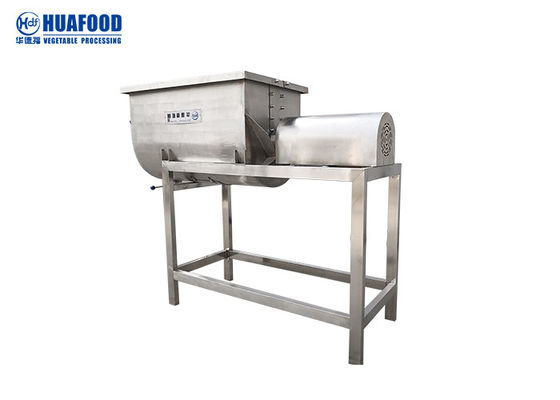

The horizontal cylinder is equipped with a blade with a biaxial rotation direction, and the blade circulately mix at an angle to axially and radially, so that the material quickly uniformly mixed . The machine can adopt different mechanical seal forms, the powder will not leak, and the bearing has long service life; the machine has high mixing efficiency, high work efficiency, low labor intensity and convenient operation. It be used in magnetic powder, ceramics, chemical, pharmaceutical, feed and other industries.
▶working principle:
The rotation speed of the shaft driven by the reducer and the blade structure will weaken the gravity of the material.With the lack of gravity, the difference in particle size and specific gravity of each material is neglected during the mixingprocess.
| Model | Overall dimensions (mm) |
Weight (kg)) |
Power/Voltage (kw/v) |
output |
| HHJ550 | 2250*800*1700 | 380 | 3/380 | 450L/time |
| HHJ160 | 2600*1020*2050 | 700 | 7.5/380 | 1000L/time |
| HHJ2100 | 2800*1280*2300 | 850 | 15/380 | 2000L/time |
