Product Details:
|

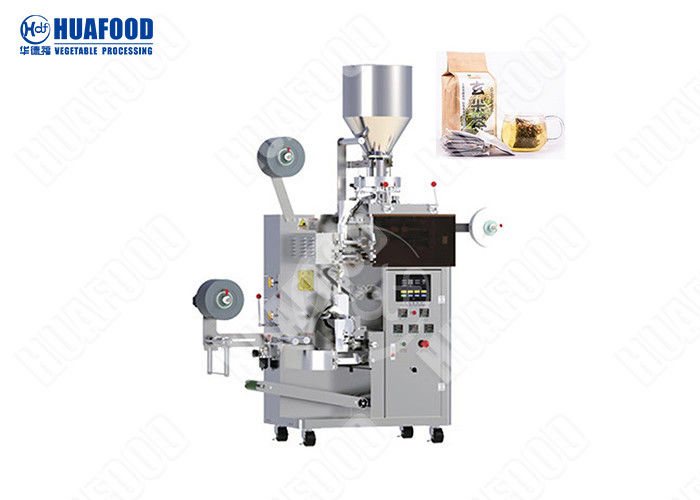

| Product Name: | Multi-Function Packaging Machine | Function: | Boxing, Embossing, Filling, Laminating, Sealing, Slitting, Wrappin |
|---|---|---|---|
| Sealing Form:: | Trilateral Seal | Material:: | Stainless Steel |
| Total Power: | 3.7kw | Input Voltage: | 220V/50HZ Single Phase |
| Measuring Range: | 1-15g/bag | Automatic Grade:: | Automatic |
| High Light: | 15g/Bag Automatic Food Packing Machine,15g Automatic Food Packing Machine,15g/Bag coffee pod packing machine |
||
Technical Parameter:
| Model | HDF-169 |
| Sealing Way | 3 sides sealing |
| Measuring range | 1-5 gram / pack |
| Inner bag size | length 50-75mm; width 50-75mm |
| Outer bag size | length 85-120mm; width 75-95mm |
| Label size | 25X25 (length * width) |
| Production capacity | 40-60 bags / min |
| Input power | 220V/50HZ single phase |
| Total power | 3.7kw |
| Machine weight | 650KG |
| Dimensions | 1050X700X1800 (mm) |
This machine features:
1. The outer sealing paper is controlled by stepper motor, and the bag length is stable and the positioning is accurate;
2, using PID to adjust the temperature controller, the temperature control is more accurate;
3, using PLC to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All parts that can be contacted are made of SUS304 stainless steel to ensure the product is hygienic and reliable;
5. Some working cylinders use original imported parts to ensure their accuracy and stability.
6, the machine attachment device can complete the functions of flat cut, date printing, easy tearing and so on.
