15g Tea Bag Packing Machine With String And Outer Bag

Description
Product Name: Multi-Function Packaging Machine Function: Boxing, Embossing, Filling, Laminating, Sealing, Slitting, Wrappin
Sealing Form:: Trilateral Seal Material:: Stainless Steel
Total Power: 3.7kw Input Voltage: 220V/50HZ Single Phase
Measuring Range: 1-15g/bag Automatic Grade:: Automatic
High Light:

15g Tea Bag Packing Machine

,

1g Tea Bag Packing Machine

,

15g tea pouch packing machine

Cheap Price Tea Bag Packing Machine With String And Outer Bag

Product Description
Tea packaging machine is suitable for one-time packaging of inner and outer bags of small particles such as tea, herbal tea and health tea roots.

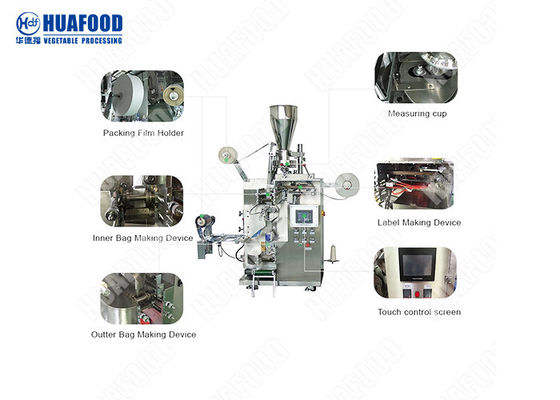

15g Tea Bag Packing Machine With String And Outer Bag 0

Technical Parameter:

Model HDF-169
Sealing Way 3 sides sealing
Measuring range 1-5 gram / pack
Inner bag size length 50-75mm;
width 50-75mm
Outer bag size length 85-120mm;
width 75-95mm
Label size 25X25 (length * width)
Production capacity 40-60 bags / min
Input power 220V/50HZ single phase
Total power 3.7kw
Machine weight 650KG
Dimensions 1050X700X1800 (mm)



This machine features:
1. The outer sealing paper is controlled by stepper motor, and the bag length is stable and the positioning is accurate;
2, using PID to adjust the temperature controller, the temperature control is more accurate;
3, using PLC to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All parts that can be contacted are made of SUS304 stainless steel to ensure the product is hygienic and reliable;
5. Some working cylinders use original imported parts to ensure their accuracy and stability.
6, the machine attachment device can complete the functions of flat cut, date printing, easy tearing and so on.

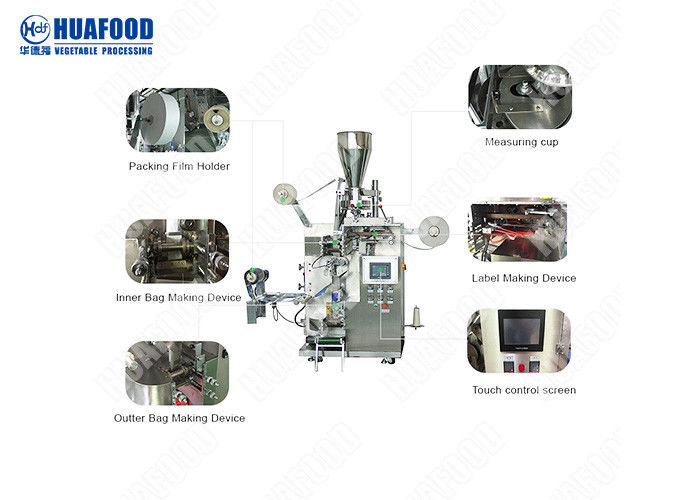

15g Tea Bag Packing Machine With String And Outer Bag 1

Automatic packaging Automatic bag cutting
After cutting, it adopts three-side sealing or back sealing packaging design, and the sealing is firm and firm. Sealing completes automatic bag cutting and packaging is completed

15g Tea Bag Packing Machine With String And Outer Bag 2

Wire plug Precision micro-control board
The materials are strictly in accordance with the export requirements. It can be said that the standard export plugs, flame-retardant PVC materials, and the thickness of the copper sheets are not comparable. High-precision, high-quality computer board for more durable, smarter and more efficient
