Product Details:
|
| Electric Heating And Motor Power: | 10KW 0.75KW | Diameter Depth: | 600*420mm |
|---|---|---|---|
| Heat Transfer Oil Quantity: | 25kg | Weight: | 110kg |
| Material: | Stainless Steel 304 | Capacity: | Customers' Request |
| Control: | Button | Volume: | 50L |
| High Light: | 50L Full Garri Processing Plant,3TPD Full Garri Processing Plant,50L garri processing machine |
||
3 Ton Per Day Full Garri Processing Plants To Nigeria
▶Product description:

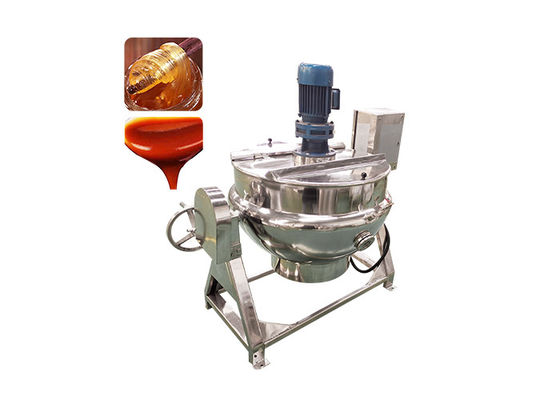

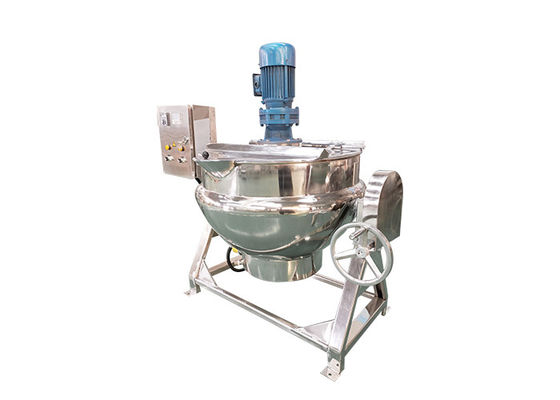

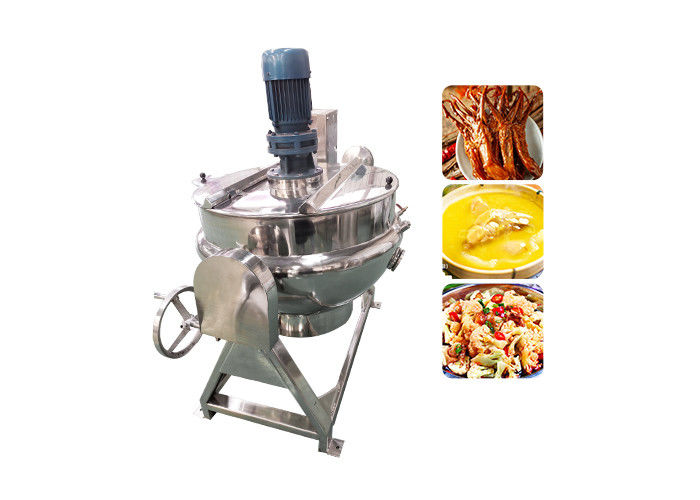

1. The pot body is a double-layer structure consisting of inner and outer spherical pots, and the overall material is 304 stainless steel.
2. Structure form: it can be divided into tilting type and vertical structure. It should be mixed with or without mixing according to the technological requirements.
3. The pot body with stirring device: the top center is stirred, the reducer output shaft and the propeller shaft are connected by looper.
4. The tilting sandwich pot can be tilted to 90 degrees, and the tilting mode is manual turnover and automatic turnover.
5. Large area of heating, uniform heating, uniform bottom scraping and no cooking.
Our company produces the tilting jacketed kettle, vertical jacketed kettle, stirring and scraping bottom stirring mixing jacketed kettle.
The jacketed kettle processing is widely used in various types of food, can also be used for large-scale restaurant or Cafeteria cook, stew, soup, porridge, is a good equipment in food processing to improve quality, shorten the time, improve working conditions.
▶Parameter:
| Volume(L) | Electric heating and motor power (KW) |
Diameter depth (MM) |
Heat transfer oil quantity(KG) |
weight(kg) | voltage(V) |
| 50 | 10KW 0.75KW | 600*420 | 25 | 110 | 380V |
| 100 | 12KW 0.75KW | 700*470 | 32.5 | 125 | 380V |
| 200 | 16KW 1.5KW | 800*550 | 42.5 | 150 | 380V |
| 300 | 18KW 1.5KW | 900*600 | 60 | 200 | 380V |
| 400 | 24KW 1.5KW | 1000*680 | 75 | 250 | 380V |
| 500 | 27KW 2.2KW | 1100*720 | 100 | 300 | 380V |
| 600 | 30KW 2.2KW | 1200*780 | 125 | 350 | 380V |
▶Main features:
The electric heating jacketed pot uses 380V power as the heat source. The jacketed pot is equipped with electric heating rods, electric heating tubes and heat transfer oil (customer self-prepared), and the maximum temperature can reach 320 degrees. It is controlled by an electric control box and equipped with a temperature control system. The electric heating jacketed pot has a large heating area, uniform heating, high thermal efficiency, short liquid boiling time, and easy heating temperature control.
