Product Details:
|
| Production Name: | Plastic Basket Washing Machine | Application: | Vegetable Storage Crate Cleaning |
|---|---|---|---|
| Feature: | Transfer Box / Basket Cleaning Equipment | Function: | Vegetable Transfer Box Cleaning Machine |
| Keywoords: | Food Basket Washer | Service: | 2 Years |
| Highlight: | plastic crate washing machine,industrial crate washers |
||
Introductions
1. Basket washing equipment in addition to the motor, outside the nozzle are made of SUS304 stainless steel, high temperature resistant plastic nozzle using quick release nozzle.
2. Transfer box cleaning section length is 2940mm, divided into four groups: the first group is a spray pipe, hot water, second groups of about 80 DEG C hot water, third groups for tap water, fourth groups for the disinfection of water; in addition to the third group of four groups of spray water are equipped with separate filtration tank, third groups of tap water as supplement water recycling second to the water tank, discharging part of dirty water after heating, third tank water disinfection by adjusting the concentration of adding second; first, the water tank is provided with steam heating tube, temperature at room temperature to 80 DEG C to set free; can also use the electric heating rod heating, heating power respectively as the alkali water tank 20kW, hot water tank were 30kW automatic temperature control.
3. The three circulating water tank adopts the horizontal stainless steel centrifugal pump circulation spray cleaning, from up and down the four directions at the same time to spray the washing basket, each water tank is provided with two filter device, easy to clean up the goods at any time; each tanks are equipped with separate drain valve, pipe cutting uniform emission; first pump for 1.5KW, second for water pump 5.5kW, third pump power is 0.75kw.
Parameter:
| Model | HDF6000 |
| Material | 304 stainless steel |
| Power | 220v/14.7kw |
| Steam pressure | 0.44Mpa |
| Steam consumption | 0.3 t/h |
| Water consumption | 50 L/min |
| Size | 6000*1700*1700mm |
Working principle:
Food basket washer is suitable for the cleaning of crates or baskets holding meat, oil, aquatic products, vegetables, etc.
Four steps for cleaning:
1. pre-washing with hot water;
2. high pressure washing with detergent;
3. final washing;
4. air-drying( if required ), which can remove 98% of surface water.
Three Main Characteristics:
1. The whole body is made of stainless steel 304;
2. Three pumps for separate washing sections;
3. Suitable for baskets of different sizes, because three pressing sticks can be adjusted freely.

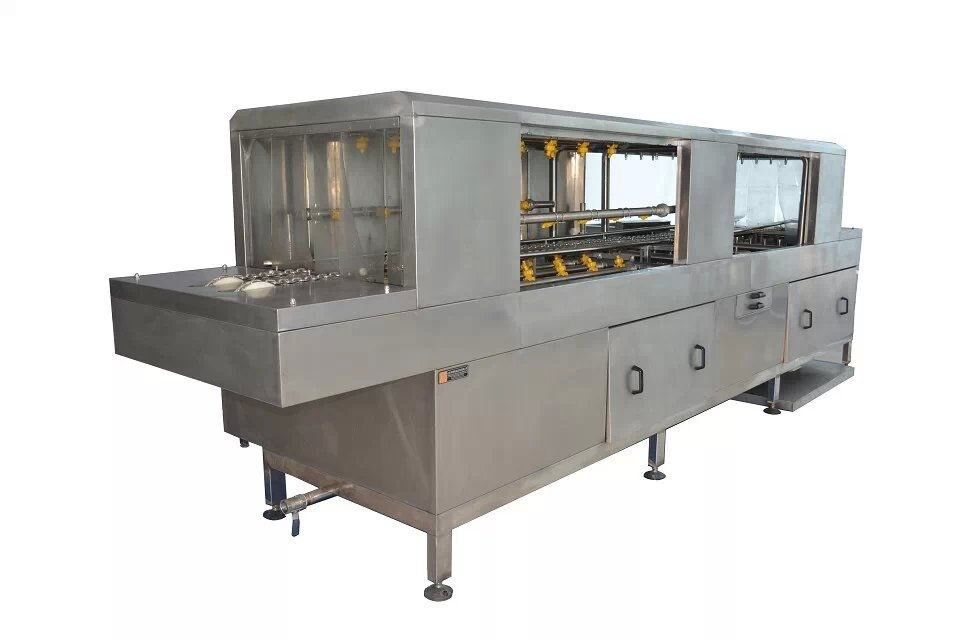

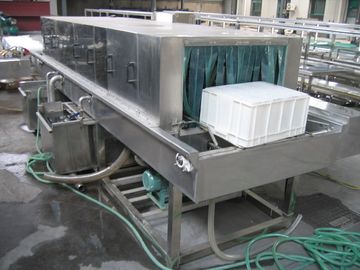

Picture:
