Home ProductsCleanroom Air Shower

Purified Air Shower Room

I'm Online Chat Now

Purified Air Shower Room

Purified Air Shower Room
Purified Air Shower Room Purified Air Shower Room Purified Air Shower Room

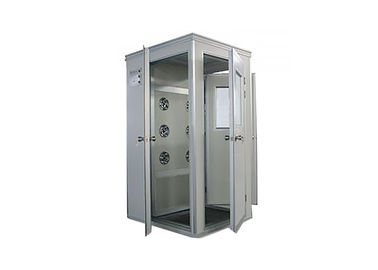

Large Image :  Purified Air Shower Room

Product Details:
Place of Origin: China
Brand Name: HFD
Certification: CE ISO9001
Model Number: HDF-FLS-BXG2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard wooden packing
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

Purified Air Shower Room

Condition: New Product Name:: Air Shower
Application:: Clean Room Entrace Warranty:: 1 Year
Power(W):: 2.2KW
High Light:

Purified Air Shower Room


2.2KW Air Shower Room


Biofuel Cleanroom Air Shower

Purified Air Shower Room Air Shower System In Biofuel Industry Stainless Steel


This is a kind of partial purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. after filtered by highly efficient filter,clean air current can be sprayed to people/product from different directions. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state.
Shower way: single-side shower, double-side shower, three-side shower,


Purified Air Shower Room 0


Nozzles 12 (6 on one side) 6(6 on one side) 24 (12on one side)
Air shower time 0-99s adjustable 0-99s adjustable 0-99s adjustable
Nozzle diameter φ30mm φ30mm φ30mm
Wind speed at
nozzle outlet
≥20m/s ≥20m/s ≥20m/s
Weight 400kg 200kg 300kg
Filter effect ≥99.99% for dust with particle size ≥0.3 μm
(sodium flame method)
Outer diameter
1400L*1500W*2100H 1200L*1000W*2100H 1400L*1920W*2100H
Inner diameter
800L*1420W*2000H 800L*920W*2000H 800L*1420W*2000H
Power supply 380/220V 50HZ 380/220V 50HZ 380/220V 50HZ
Overall dimensions of high efficiency filter 600*600*120
(two on one side)
(two on one side)
(two on one side)
Maximum power 2.2KW 0.5kw 2.2kw
Shell material all stainless steel
(304 or 201)
all stainless steel
(304 or 201)
all stainless steel
(304 or 201)



1. HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles);

2. Solid-state microprocessor panel: programmable control over access door operation;

3. Electronic magnetic interlocking doors:

4. Energy-efficient LED light ;

5. White powder-coated or stainless steel finishes;

6. Variety of sizes and door configurations;

7. Economical to operate and easy to maintain;

8. Custom sizes and configurations: available;

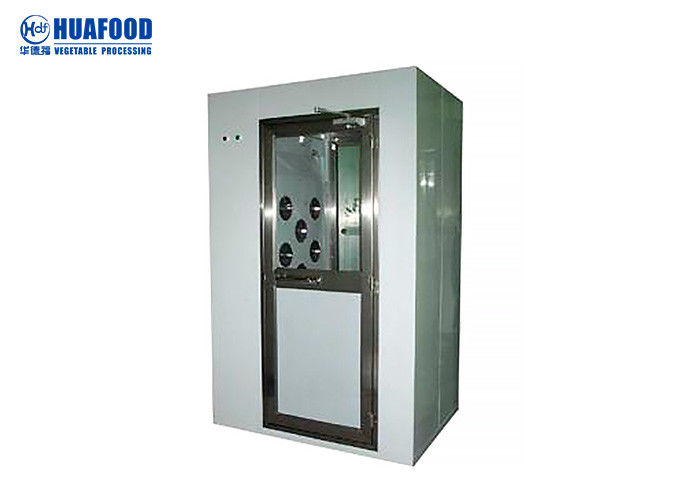

Purified Air Shower Room 1


Purified Air Shower Room 2

Air shower room most service for clean room

(1) Assembly structure customized design, easy installation and easily moved.

(2) Directional wheels can be installed, suitable for small building and high cleanliness area;

(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters

(4) It has large useful and effective area,while compared with traditional clean room, it has such features like low investment,high return and stability.

Our products are involved in electronics, electrical appliances, food, chemical, clothing, footwear, automobile manufacturing and other industries, products covered by the automatic assembly line, drying line, roller conveyor belt, metal mesh belt conveyor,chain conveyor, chain suspension conveyor and plug-in line, speed chain conveyor line, station operation equipment, we are professional production line manufacturer.
