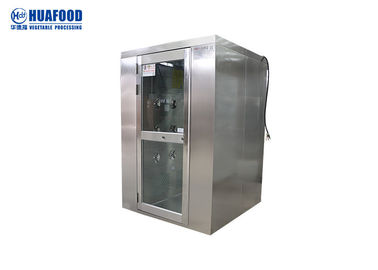

Large Image :  Cleanroom Air Vented Shower

Product Details:
Place of Origin: China
Brand Name: HFD
Certification: CE ISO9001
Model Number: HDF-FLS-BXG2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: standard wooden packing
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

Cleanroom Air Vented Shower

Condition: New Product Name:: Air Shower
Application:: Clean Room Entrace Warranty:: 1 Year
Power(W):: 2.2KW
High Light:

Cleanroom Air Vented Shower


2.2KW Air Vented Shower


Pharmaceutical Cleanroom Air Shower

High Safety Level Air Vented Shower Heads For Pharmaceutical industry


Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.


Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

Cleanroom Air Vented Shower 0



Nozzles 12 (6 on one side) 6(6 on one side) 24 (12on one side)
Air shower time 0-99s adjustable 0-99s adjustable 0-99s adjustable
Nozzle diameter φ30mm φ30mm φ30mm
Wind speed at
nozzle outlet
≥20m/s ≥20m/s ≥20m/s
Weight 400kg 200kg 300kg
Filter effect ≥99.99% for dust with particle size ≥0.3 μm
(sodium flame method)
Outer diameter
1400L*1500W*2100H 1200L*1000W*2100H 1400L*1920W*2100H
Inner diameter
800L*1420W*2000H 800L*920W*2000H 800L*1420W*2000H
Power supply 380/220V 50HZ 380/220V 50HZ 380/220V 50HZ
Overall dimensions of high efficiency filter 600*600*120
(two on one side)
(two on one side)
(two on one side)
Maximum power 2.2KW 0.5kw 2.2kw
Shell material all stainless steel
(304 or 201)
all stainless steel
(304 or 201)
all stainless steel
(304 or 201)

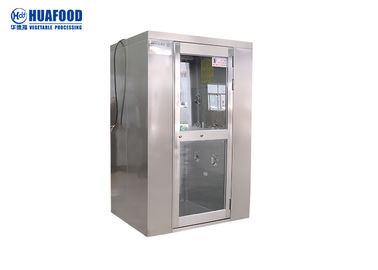

Cleanroom Air Vented Shower 1




1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.


2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.


3,Floor and nozzles are made of quality stainless steel.


4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.


5, air velocity can up to 25m/s. professional and fast design, non-standard products.

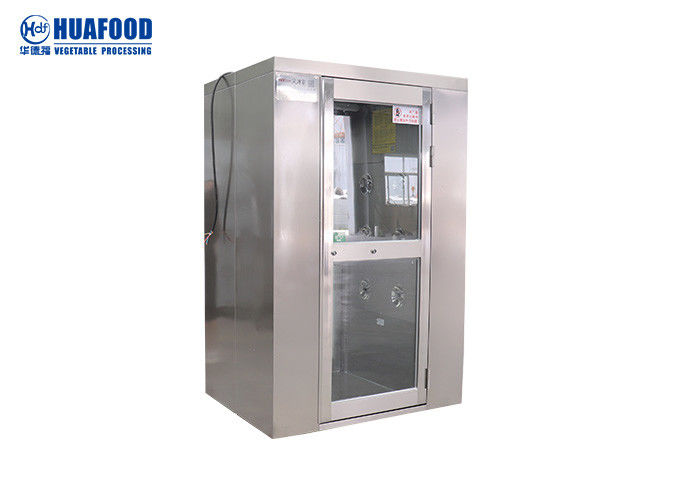

Cleanroom Air Vented Shower 2
