Product Details:
Place of Origin: Henan Zhengzhou China
Brand Name: HDF
Certification: CE
Model Number: HDF-FLS-BXG3-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard wooden packing
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

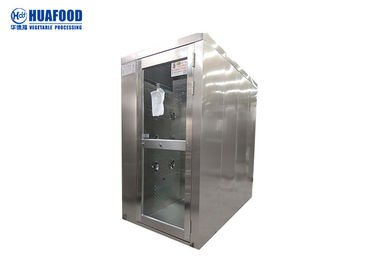

Purified Air Shower Room Three Side Blow Cleanroom Air Shower Machine

Description
Product Name: Cleanroom Air Shower Application: Clean Room Entrace
Condition: New Power: 2.2kw
Dimensions: 800L*1420W*2000Hmm
High Light:

industrial food packaging equipment

,

dry food packaging machine

Purified Air Shower Room Three Side Blow Cleanroom Air Shower Machine



Air shower series product is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery,medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is

usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.

Principle

The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.





Purified Air Shower Room Three Side Blow Cleanroom Air Shower Machine 0

Model HDF-FLS-BXG2-2 HDF-FLS-BXG1-1 HDF-FLS-BXG3-2
Nozzles 12 (6 on one side) 6(6 on one side) 24 (12on one side)
Air shower time 0-99s adjustable 0-99s adjustable 0-99s adjustable
Nozzle diameter φ30mm φ30mm φ30mm
Wind speed at
nozzle outlet
≥20m/s ≥20m/s ≥20m/s
Weight 400kg 200kg 300kg
Filter effect ≥99.99% for dust with particle size ≥0.3 μm
(sodium flame method)
Outer diameter
dimension
1400L*1500W*2100H 1200L*1000W*2100H 1400L*1920W*2100H
Inner diameter
dimension
800L*1420W*2000H 800L*920W*2000H 800L*1420W*2000H
Power supply 380/220V 50HZ 380/220V 50HZ 380/220V 50HZ
Overall dimensions of high efficiency filter 600*600*120
(two on one side)
600*600*120
(two on one side)
600*600*120
(two on one side)
Maximum power 2.2KW 0.5kw 2.2kw
Shell material all stainless steel
(304 or 201)
all stainless steel
(304 or 201)
all stainless steel
(304 or 201)





Feature

1. HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles);

2. Solid-state microprocessor panel: programmable control over access door operation;

3. Electronic magnetic interlocking doors:

4. Energy-efficient LED light ;

5. White powder-coated or stainless steel finishes;

6. Variety of sizes and door configurations;

7. Economical to operate and easy to maintain;

8. Custom sizes and configurations: available;

Purified Air Shower Room Three Side Blow Cleanroom Air Shower Machine 1
