150kg/H Snack Food Processing Machinery

I'm Online Chat Now

150kg/H Snack Food Processing Machinery

150kg/H Snack Food Processing Machinery
150kg/H Snack Food Processing Machinery 150kg/H Snack Food Processing Machinery 150kg/H Snack Food Processing Machinery

Large Image :  150kg/H Snack Food Processing Machinery

Product Details:
Place of Origin: China
Brand Name: Huafood
Certification: CE
Model Number: HDF-C800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: The international packing standard of wooden case packing or as customers' needs
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets/month

150kg/H Snack Food Processing Machinery

Description
Product Neme: Snack Food Processing Machinery Material: 304SUS
Application: Peanut/tablet/candy Coated Machine Feature: Automatic
Dimensions: 1150*800*1600mm Weight: 240kg
Output: 30-50kg/h
High Light:

corn snacks making machine

,

snack food processing equipment

HDF-800 Output 80-150kg/H Nut Coating Machine For Sale Chocolate Coating Machine

Product Description

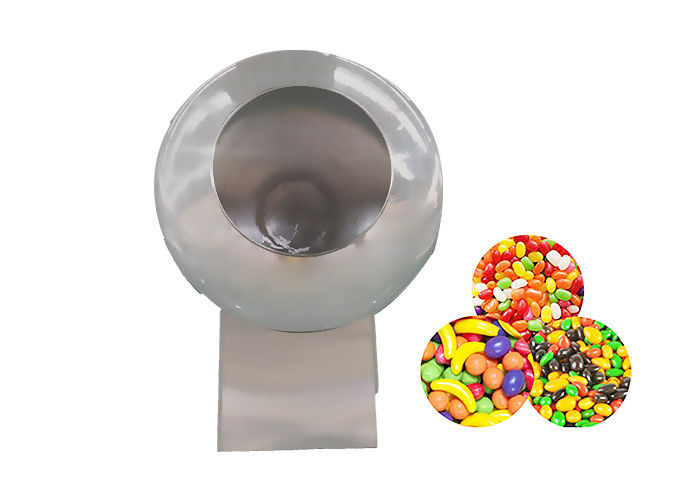

Our main function of Chocolate Candy Ball Coating Pan Machine is spray the chocolate slurry on variety of different shapes of nuts,snacks in the chocolate coating pan under the pump pressure through the insulation pipes.The chocolate slurry can be coating evenly on the nuts because the coating pan rotate and rotate.





Application



The Chocolate coating machine is widely used in pharmaceutical and foodstuff. It is used for rolling and heating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut,dumplings, crispy fruit and spicy bean and so on.




Working Principle



This chocolate coating machine has advantages of simple structure, easy operation, and smooth surface. It can save accessories and it is also easy to maintain. This sugar coating pan machine is the ideal machine for tablet film sugar coating. It is also the ideal machine for chocolate coating and others.It can be Matched with a electrothermic type blower,and there is an air outlet stretch into the pot making heating or blowing cold, adjustable.

150kg/H Snack Food Processing Machinery 0



Technology Parameter



DiSa. of coating pan 800mm 1000mm 1250mm
Production capacity 30-50/kg 50-70/Kg 80-150/kg
Rotary speed of coating pan 32r/min 32r/min 28r/min
Adjustable angle of inclination 15 -45°c 15 -45°c 15 -45°c
Motor power 1.1kw 1.5kw 2.2kw
Power of blower fan 200w 200w 370w
Outline dim.(mm)(L x W x H) 1150x 800 x 1600 1150 x 1100 x 1430 1340 x 1250 x 1680
Internal and external heating power 1500w /2000w 1500w /2000w 2000w/ 2000w
Weight 240kg 250kg 400kg

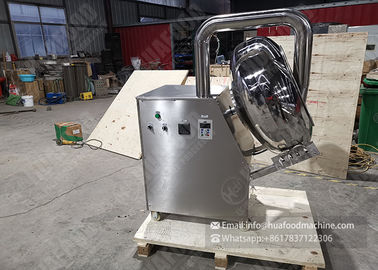

Picture Show



150kg/H Snack Food Processing Machinery 1
