Product Details:
|
| Product Neme: | Peanut Coating Machine | Material: | 304SUS |
|---|---|---|---|
| Application: | Peanut/tablet/candy Coated Machine | Feature: | Automatic |
| Dimensions: | 1150*800*1600mm | Weight: | 240kg |
| Output: | 30-50kg/h | ||
| High Light: | 32r/Min Snack Food Processing Machinery,32r/Min Pill Coating Machine,70Kg/H Pill Coating Machine |
||
Product Description
Our main function of Chocolate Candy Ball Coating Pan Machine is spray the chocolate slurry on variety of different shapes of nuts,snacks in the chocolate coating pan under the pump pressure through the insulation pipes.The chocolate slurry can be coating evenly on the nuts because the coating pan rotate and rotate.
Application
The Chocolate coating machine is widely used in pharmaceutical and foodstuff. It is used for rolling and heating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut,dumplings, crispy fruit and spicy bean and so on.
Working Principle
This chocolate coating machine has advantages of simple structure, easy operation, and smooth surface. It can save accessories and it is also easy to maintain. This sugar coating pan machine is the ideal machine for tablet film sugar coating. It is also the ideal machine for chocolate coating and others.It can be Matched with a electrothermic type blower,and there is an air outlet stretch into the pot making heating or blowing cold, adjustable.
Technology Parameter
| DiSa. of coating pan | 800mm | 1000mm | 1250mm |
| Production capacity | 30-50/kg | 50-70/Kg | 80-150/kg |
| Rotary speed of coating pan | 32r/min | 32r/min | 28r/min |
| Adjustable angle of inclination | 15 -45°c | 15 -45°c | 15 -45°c |
| Motor power | 1.1kw | 1.5kw | 2.2kw |
| Power of blower fan | 200w | 200w | 370w |
| Outline dim.(mm)(L x W x H) | 1150x 800 x 1600 | 1150 x 1100 x 1430 | 1340 x 1250 x 1680 |
| Internal and external heating power | 1500w /2000w | 1500w /2000w | 2000w/ 2000w |
| Weight | 240kg | 250kg | 400kg |

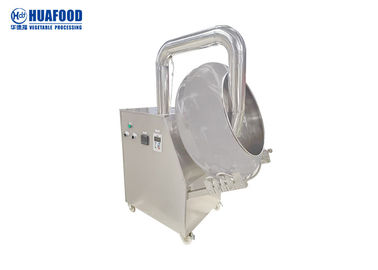

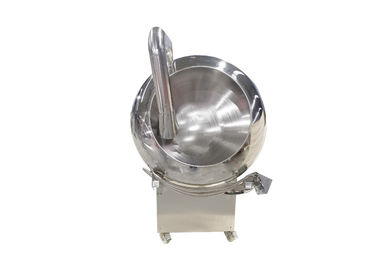

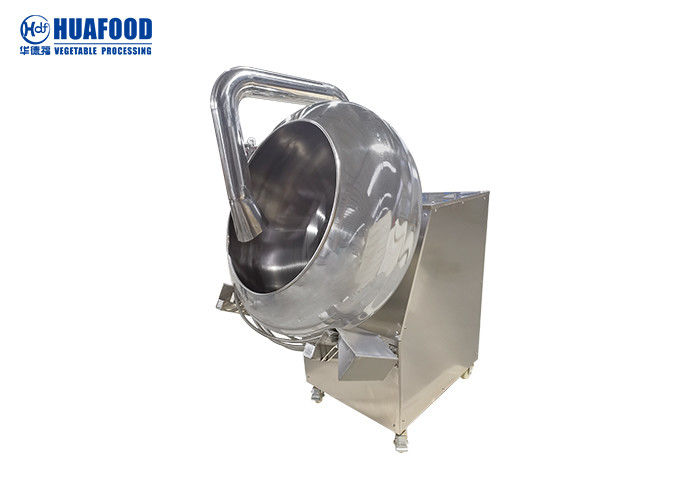

Picture Show
