Product Details:
|
| Electric Heating And Motor Power: | 10KW 0.75KW | Diameter Depth: | 600*420mm |
|---|---|---|---|
| Heat Transfer Oil Quantity: | 42.5kg | Weight: | 110kg |
| Material: | Stainless Steel 304 | Capacity: | Customers' Request |
| Control: | Button | Volume: | 50L |
| Application: | Food Industry | Heating Method: | Electric /motor/steam Heating |
| Feature: | Thickened Insulation Layer | ||
| High Light: | 10KW Gas Cooking Mixer,50L Gas Cooking Mixer,600*420mm Jacketed Pans |
||

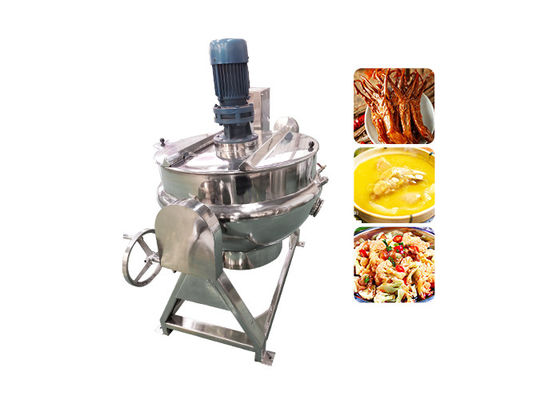

Industrial Gas Cooker Cooking Pot With Mixer Gas Fired Cooking Mixer/ Jacketed Kettle Gas Food Warmer Cooker
▶Product description:
Jacketed pans are widely used in the processing of foods such as candy, pharmaceuticals, dairy, wine, pastries, preserves, beverages, cans, and stew, and can also be used in large restaurants or canteens to cook soup, cooking, stew, porridge, etc. Processing good equipment that improves quality, shortens time, and improves working conditions.
▶Parameter:
| Volume(L) | Electric heating and motor power (KW) |
Diameter depth (MM) |
Heat transfer oil quantity(KG) |
weight(kg) | voltage(V) |
| 50 | 10KW 0.75KW | 600*420 | 25 | 110 | 380V |
| 100 | 12KW 0.75KW | 700*470 | 32.5 | 125 | 380V |
| 200 | 16KW 1.5KW | 800*550 | 42.5 | 150 | 380V |
| 300 | 18KW 1.5KW | 900*600 | 60 | 200 | 380V |
| 400 | 24KW 1.5KW | 1000*680 | 75 | 250 | 380V |
| 500 | 27KW 2.2KW | 1100*720 | 100 | 300 | 380V |
| 600 | 30KW 2.2KW | 1200*780 | 125 | 350 | 380V |
▶Main features:
The electric heating jacketed pot uses 380V power as the heat source. The jacketed pot is equipped with electric heating rods, electric heating tubes and heat transfer oil (customer self-prepared), and the maximum temperature can reach 320 degrees. It is controlled by an electric control box and equipped with a temperature control system. The electric heating jacketed pot has a large heating area, uniform heating, high thermal efficiency, short liquid boiling time, and easy heating temperature control.
